22V Low Voltage Constant Current LED strips (8xLEDs in series) MASTER-64CC-LV

Constant cureent LED strips (Without any protective CC IC on board) are great solution whenever smaller lengths are used and superior light efficacy is required.
The product is especially suitable for office linear Luminaire manufacturers.

8x LEDs in series (22V) Low Voltage LED strips MASTER-64CC-LV

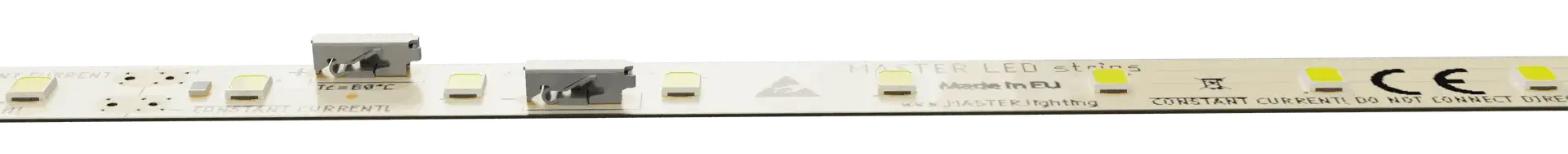

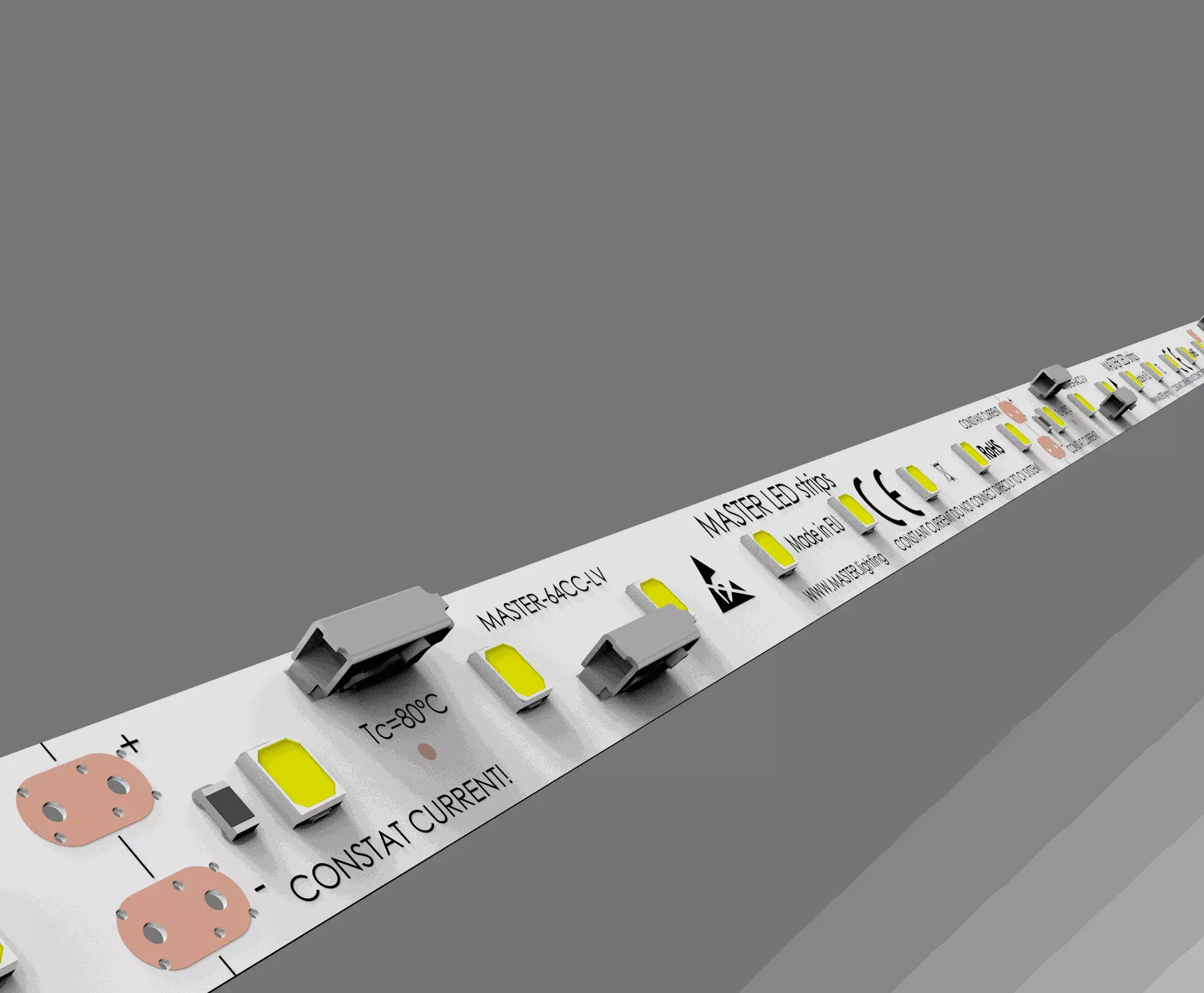

Low voltage 22V LED strip constant current design with 8 LEDs per segment in series with 22-23V forward voltage 3D model sideview

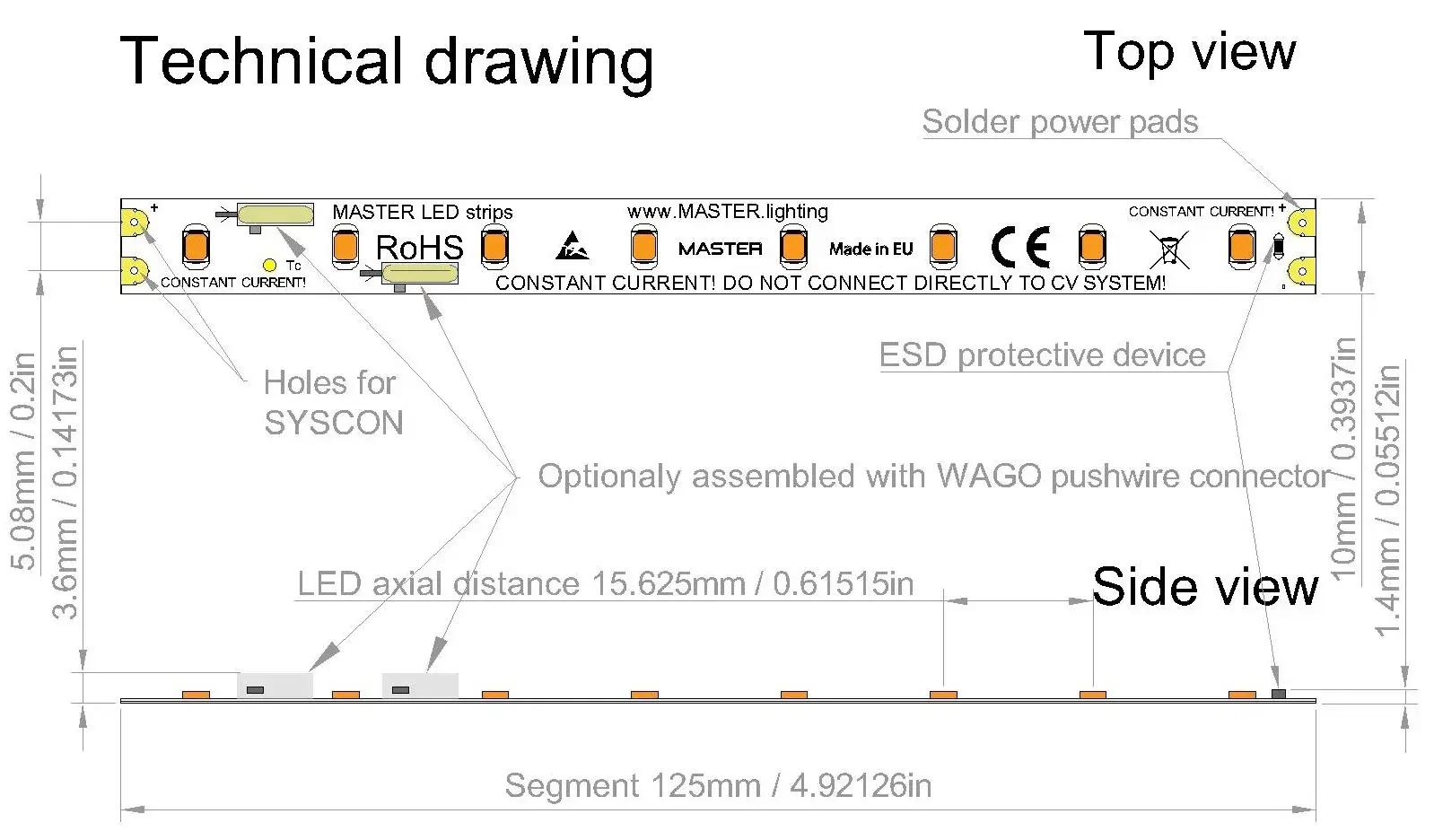

Technical drawing

Low voltage 22V LED strip constant current design with 8 LEDs per segment in series with 22-23V forward voltage technical drawing

Low voltage 22V LED strip constant current design with 8 LEDs per segment in series with 22-23V forward voltage technical drawing


Available in any from our 42 different COLOUR options. We keep on stock for high availability the following options with CRI 90+: W927,W930,W940,W957

Colours to choose from

Files to download

Catalogue to download

3D files, DXF files, EULUM data
