Digitally controlled pixel LED strips SPI MASTER-DIGITAL-MONO96 and MASTER-DIGITAL-BIO96

Dynamically controlled LED pixel strips, with very high power of upto 83W/m and very dense high voltage LEDs (96x/m) are especially suitable for very low profile diffused architectural and sculpture lighting with very high Lm flux to attract everybody's focus. Superior power and high density allows almost dot-free lighting from about 2-3m even without diffusers, thus moving the whole lighting to very new dimension. This very powerfull LED strips are especially suitable for all glass sculpture lighting application. Its high power is able to deliver great lighting peaks, which will attract many customers from larger distance than lower powered 5V strips. The LED strip has implemented external IC with protocol TM1814 allowing to controll upto 4 monochromatic LEDs per segment, each LED with driving current of 18mA/ LED in standard mode or 38mA / LED in Boost mode (software boost). Please note : for best lifetime and parameters, it is highly advised to design your custom effects in a wise way not to power up all LEDs on 100%, as you will face several problems with heat management, power management, Voltage drop, etc. The Great top power limit, please use for :sparkling effects mainly. This way you will make sure, the great power allowed in the LED strips will not affect the whole installation and its current and thermall limits.

Technical parameters :

- Nominal voltage 24V

- Certificates : IP20, RoHS, CE

- no. of individually controlled LEDs in segment : 4

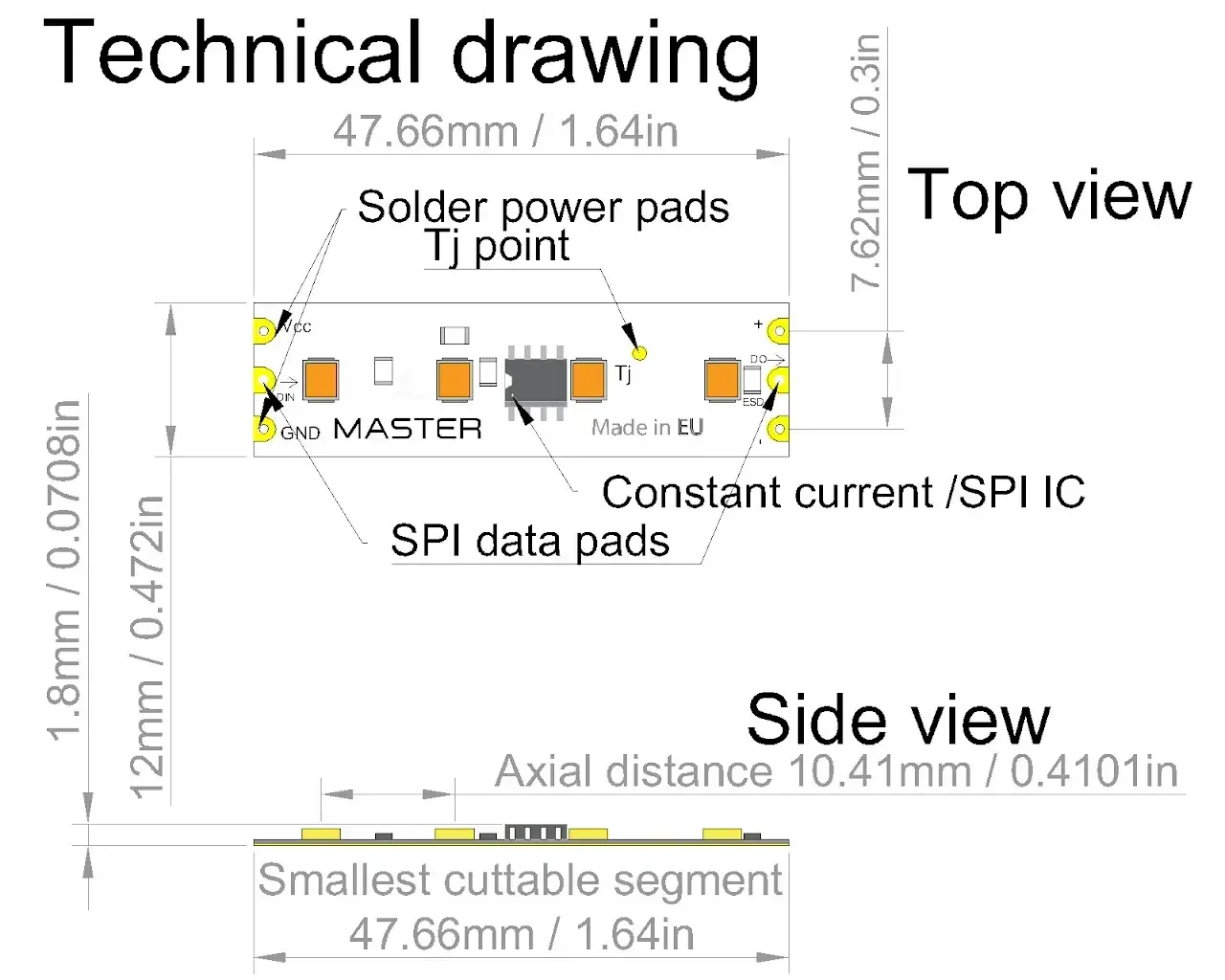

- segment length : 47.66mm

- max. current per LED : 38mA (software controlled from 6.5mA to 38mA)

- total power of LED strip (if current set to max. and all channels are lit) : 83W

- no. of LEDs/m : 96 (each can be individually controlled)

- Communication protocol SPI : TM1814
