SUPERNARROW LED strips MASTER

Super narrow LED strips are ideall for every low profile gap where light in very homogenous line is required. It is suitable for all edge lighting such as advertisement, large ligthing panels with sideview light guide plates, or edge lighting of large glass plates, shelves, etc. Due to its tiny dimensions it is possible to install it in almost any material with gap at least 5mm. Due to its tiny copper circuit board it has been designed to be used with 24VDC to keep the current and the voltage drop as small as possible. With use of constant current drivers the lighting line is absolutely uniform, with no loss of light along the length, making sure its lifetime and spectral characteristics are always performed within best possible limits.

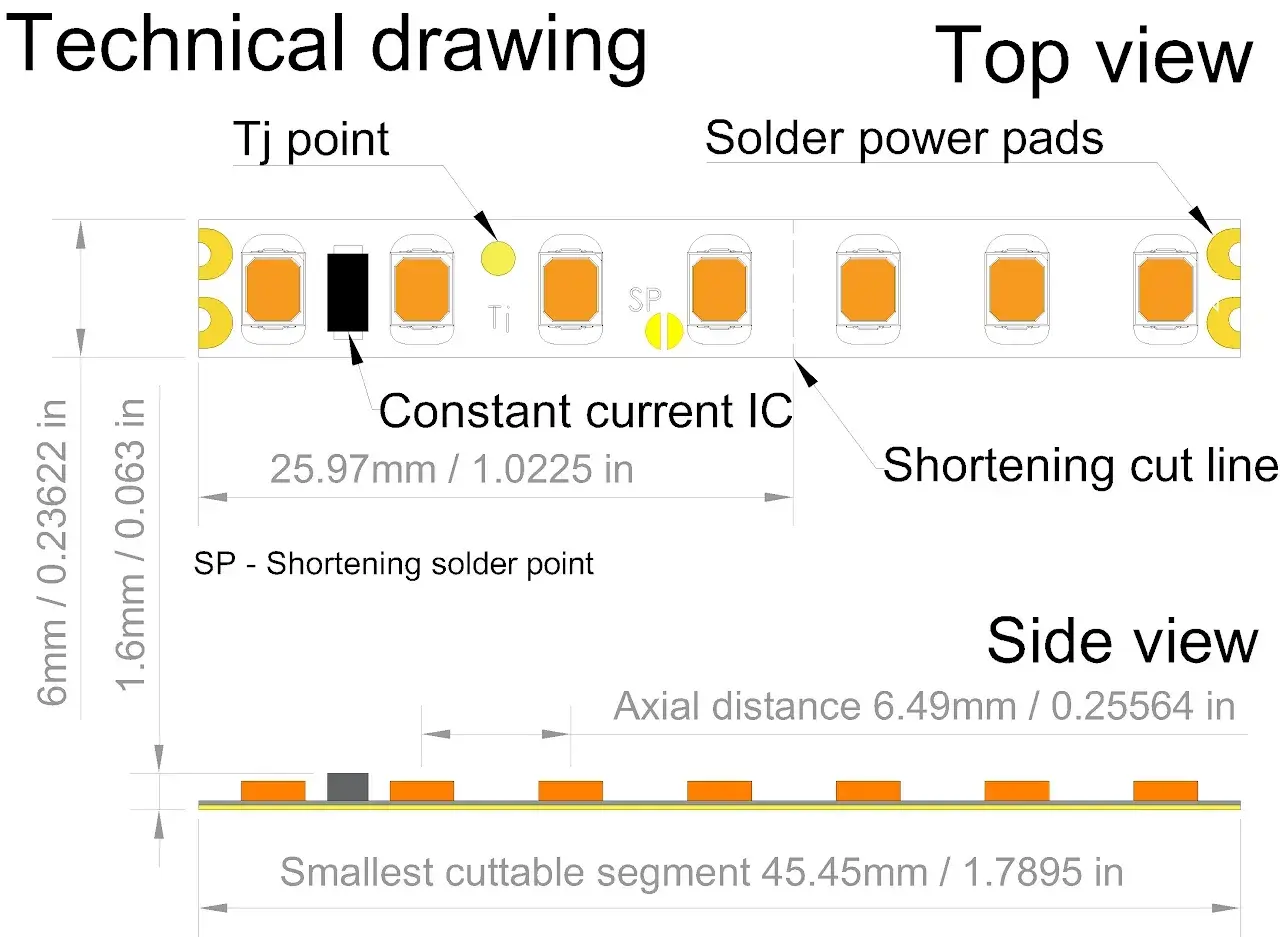

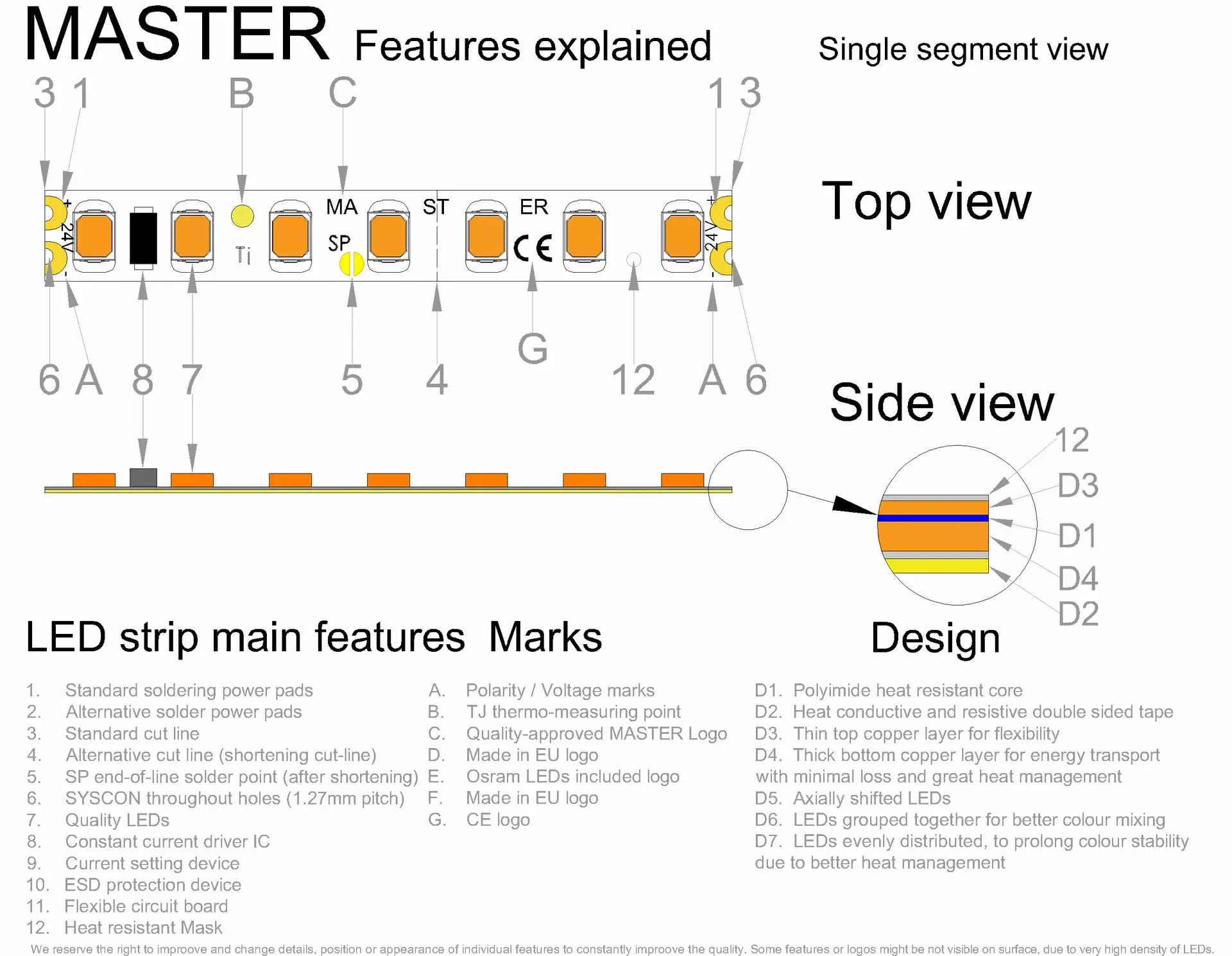

MASTER SUPERNARROW LED strip segment drawing with all features explained

Spectral characteristics valid for all OSRAM LEDs included with suffix code : -W8xx


Chromaticity coordinate graph explaining LED chip BINNING

OSRAM spectral emission of LED chip
